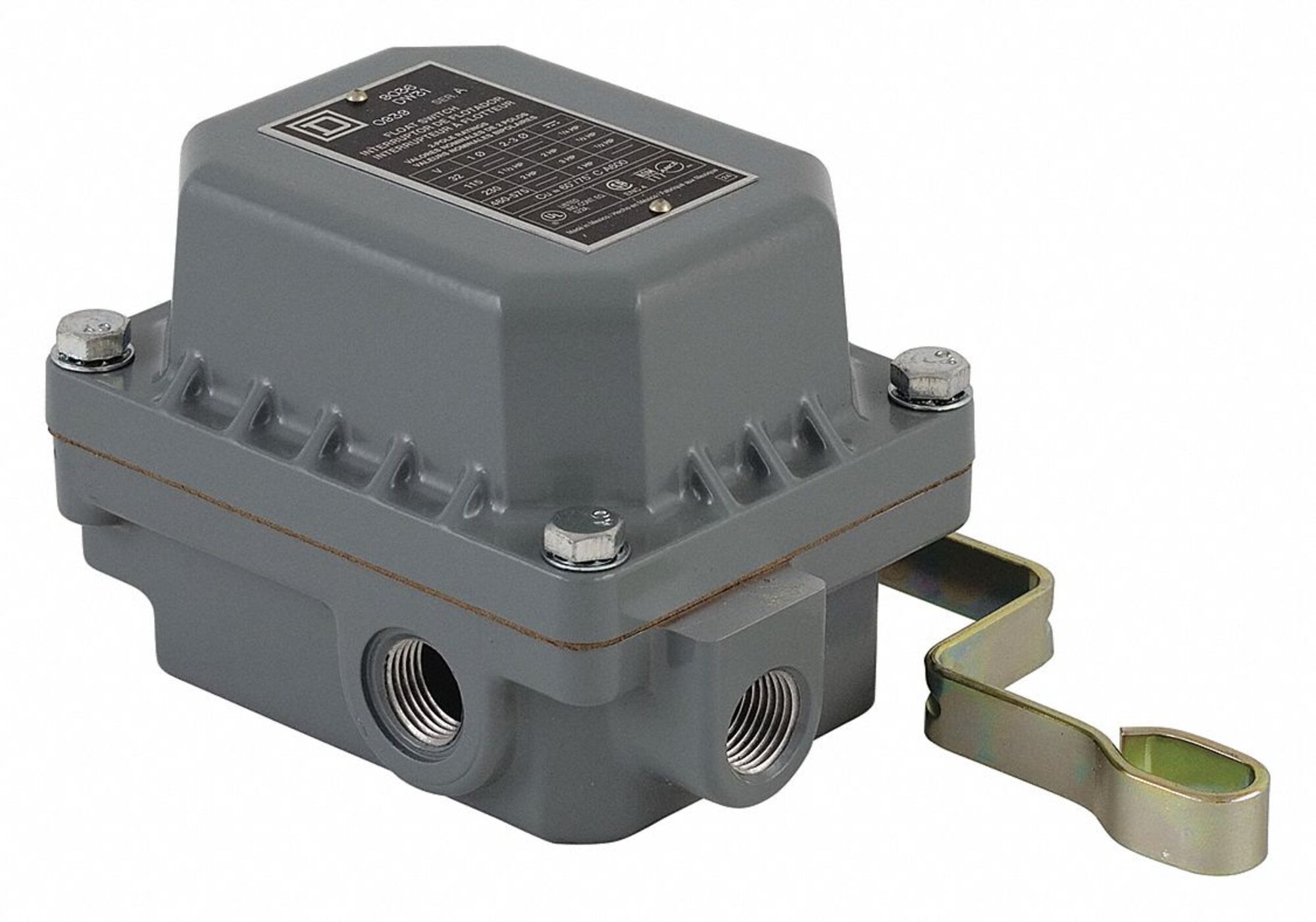

Image is an illustration, may not reflect the exact product sold.


Other products by Schneider Electric

Schneider Electric - 9036DR31 - TELEMECANIQUE SENSORS Open Liquid Level Switch: Close On Rise, Open Tank Vertical Mounting, DPST-2NC

  • MFR SKU: 9036DR31
  • ITEM #: 23192522
  • 0 Reviews / 0 Questions
Lists At: $513.00 You Save: $111.99
21.83 % OFF
$401.01
Stock Status: SHIPS SOON (reserve your unit today)

ITEM #: 23192522
These open-tank float switches have lever mechanisms connected to floats that actuate when the float moves up and down as fluid levels change.

Schneider Electric - 9036DR31 - TELEMECANIQUE SENSORS Open Liquid Level Switch: Close On Rise, Open Tank Vertical Mounting, DPST-2NC

  • Item #: 23192522
  • MFR SKU: 9036DR31
  • Brand: TELEMECANIQUE SENSORS
  • Manufacturer Part Number: 9036DR31
  • Series: 9036D
  • Body Material: Aluminum
  • Components Included: Mechanical Actuator
  • Contact Form: DPST-2NC
  • Current Rating: 600 A
  • Display Qty: 1
  • Electrical Connection Type: Screw Clamp
  • Features: (2) Conduit Entries for 3/4 in-14 NPT
  • Float Diameter: 7 in
  • Float Material: Stainless Steel
  • Float Rod Angle: Vertical
  • Float Travel: 1-1/4 in
  • Horsepower @ Single Phase - 120V AC: 2 hp
  • Horsepower @ Single Phase - 240V AC: 3 hp
  • Horsepower @ Three Phase - 240V AC: 5 hp
  • Manufacturer Warranty Length: 18 mo
  • Minimum Media Specific Gravity: 0.85
  • Mounting Style: Open Tank Vertical
  • NEMA Enclosure Rating: 7; 9
  • Operating Temperature - Maximum: 220 ° F
  • Operating Temperature - Minimum: -22 ° F
  • Overall Height: 4.27 in
  • Overall Length: 7.1 in
  • Overall Width: 2.53 in
  • Product Type: Open Liquid Level Switch
  • Standards: CSA File ; UL 508; UL E12443
  • Switch Function: Close On Rise
  • Voltage Rating - Maximum: 575 V AC
  • UNSPSC: 39121531
  • Country of Origin: Mexico (subject to change)
