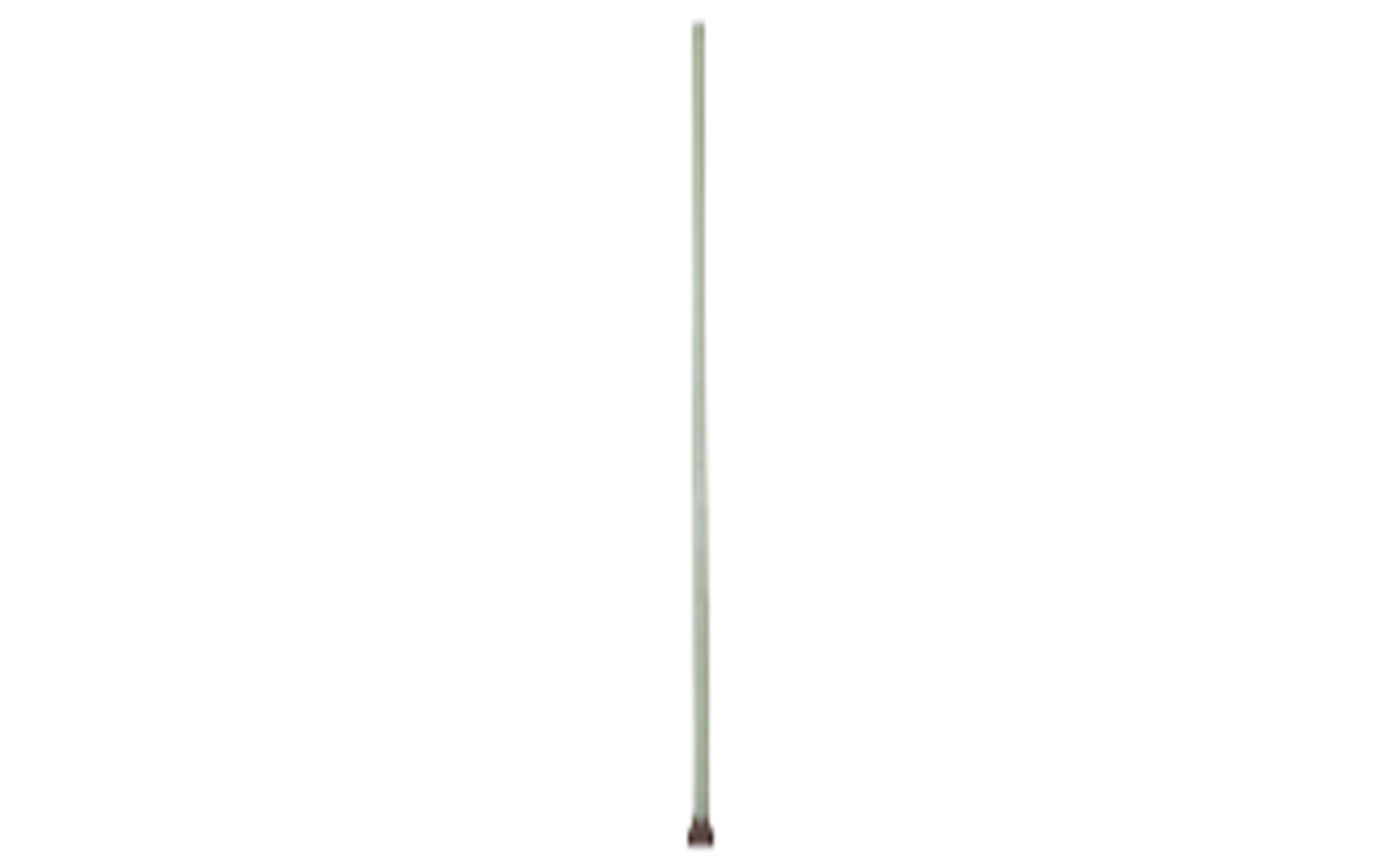

Image is an illustration, may not reflect the exact product sold.


Other products by RFS Technologies / Amphenol

RFS Technologies / Amphenol - BMR12-B-B1 - Penetrator™ Antenna, 806-869, 18.1dBi, 140deg

  • MFR SKU: BMR12-B-B1
  • ITEM #: 10012402
  • 0 Reviews / 0 Questions
Currently Not In Stock
This product appears to have been discontinued, however, other similar products may be available. Our product specialists would be happy to research this for you and provide recommendations. Email me suggestions!

ITEM #: 10012402
The novel side fed dipole design of these antennas provides 6 dBd, 8 dBd, 10 dBd or 12 dBd omnidirectional gain with 63 MHz bandwidth. They feature constant beamtilt, heavy null fill, and have been VSWR tested. Depending upon the specific required area of coverage, horizontal patterns O, A, B, D or H are available.
FEATURES / BENEFITS
  • High gain maximizes ERP.
  • Heavy null fill enhances close-in coverage.
  • Customized beamtilt minimizes interference to and from adjacent...
ITEM #: 10012402
The novel side fed dipole design of these antennas provides 6 dBd, 8 dBd, 10 dBd or 12 dBd omnidirectional gain with 63 MHz bandwidth. They feature constant beamtilt, heavy null fill, and have been VSWR tested. Depending upon the specific required area of coverage, horizontal patterns O, A, B, D or H are available.
FEATURES / BENEFITS
  • High gain maximizes ERP.
  • Heavy null fill enhances close-in coverage.
  • Customized beamtilt minimizes interference to and from adjacent systems.
  • Various patterns available to efficiently cover target area.
Read More >>

RFS Technologies / Amphenol - BMR12-B-B1 - Penetrator™ Antenna, 806-869, 18.1dBi, 140deg

  • Item #: 10012402
  • MFR SKU: BMR12-B-B1
  • Electrical Specifications
  • Horizontal Pattern Directional
  • Frequency Range MHz 806 - 869
  • Horizontal Beamwidth deg 140
  • Electrical Downtilt deg 0.75
  • Gain dBi (dBd) 18.1 (16)
  • Vertical Beamwidth deg 3.5
  • 1st Null Fill dB Included
  • Null Fill dB Included
  • Front-To-Back Ratio dB 15
  • Polarization Vertical
  • VSWR < 1.5:1
  • Bandwidth for 1.5:1 VSWR MHz < 1.5:1
  • Impedance Ohms 50
  • Maximum Power Input W 500
  • Lightning Protection Top Rod Grounded to Base Mount
  • General Specifications
  • Antenna Type Penetrator
  • Mechanical Specifications
  • Connector Type N Female
  • Connector Location Bottom
  • Weight kg (lb) 42 (92)
  • Weight with B1 Bracket kg (lb) 56 (124)
  • Mount Type Bracket
  • Mounting Hardware B1 Bracket (included)
  • Rated Wind Speed km/h (mph) 225 (140)
  • Rated Wind Speed Comment *
  • Overall Length m (ft) 6.1 (20)
  • Diameter mm (in) 168.3 (6.625)
  • Radiating Element Material Aluminum
  • Element Housing Material Fiberglass
  • Mounting Hardware Material B1 Bracket (included)
  • Max Wind Loading Area m (ft) 1.04 (11.2)
  • Survival Wind Speed km/h (mph) 225 (140)
  • Wind Speed Comment *
  • Packaging Information
  • Shipping Weight kg (lb) 61.3 (135)
  • Notes
  • [*Note*] * Up to a maximum height of 500 ft.
