RFS (Radio Frequency Systems) - SCF14-50J - CELLFLEX, Coaxial Cable, Polyethylene, Foam-Dielectric, 50 Ohm, 0.31 in. Dia., 20.4 GHz Frequency, 1/4 in., ( Each )

  • MFR SKU: SCF14-50J
  • ITEM #: 10011148
  • 0 Reviews / 0 Questions
$6.95
Stock Status: In Stock

ITEM #: 10011148

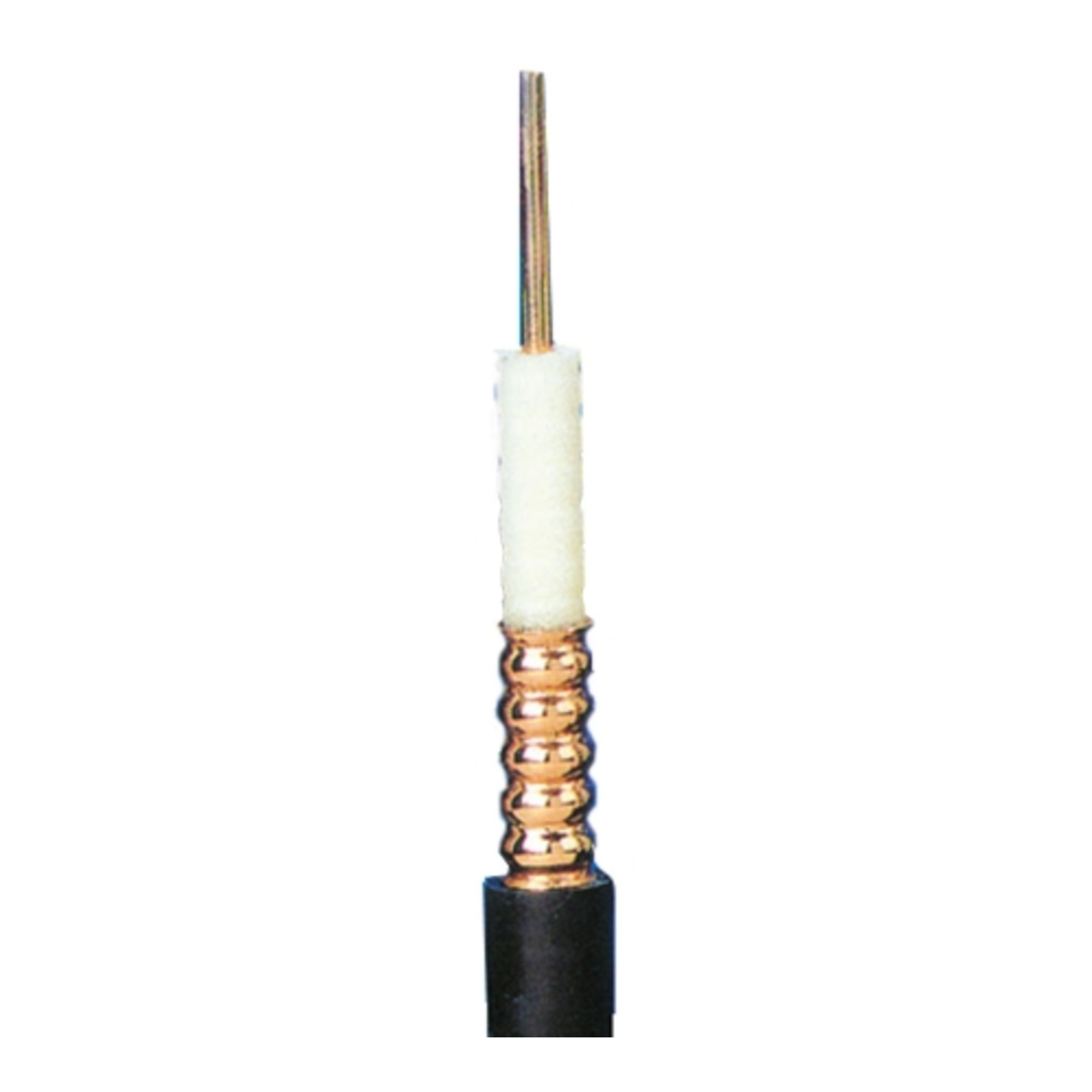

The RFS 15214711 1/4 in 50 Ohm coaxial cable is superflexible because of a spiral corrugated outer conductor. The coaxial cable transmission line has a solid copper-clad aluminum center conductor. This Superflex cable has a maximum frequency capacity is 20.4 GHz.
The RFS 1/4 in Superflex coaxial cable is available in bulk and is cut per foot.

RFS (Radio Frequency Systems) - SCF14-50J - CELLFLEX, Coaxial Cable, Polyethylene, Foam-Dielectric, 50 Ohm, 0.31 in. Dia., 20.4 GHz Frequency, 1/4 in., ( Each )

  • Item #: 10011148
  • MFR SKU: SCF14-50J
  • Minimum Bending Radius: 1 in
  • Peak Power: 6.4 kW
  • Bending Moment: 0.8 lb-ft
  • VOP: 82 %
  • Flat Plate Crush Strength: 100 PSI
  • Attenuation/100 ft @ 960 MHz: 5.81 dB
  • Tensile Strength: 135 lb
  • Outer Conductor Material: Copper
  • Average Power @ 30 MHz: 2.09 kW
  • Attenuation/100 ft @ 894 MHz: 5.6 dB
  • Diameter Over Jacket: 0.31 in
  • Capacitance Per Foot: 25 pF
  • Cable Weight Per Foot: 0.05 lb
  • DC Resistance (ctr/shld) Ohms: 3.17/2.01
  • Attenuation/100 ft @ 50 MHz: 1.24 dB
  • Average Power @ 50 MHz: 1.62 kW
  • Average Power @ 450 MHz: 0.52 kW
  • RF Impedance: 50 Ohms
  • DC Breakdown Voltage: 1.6 kV
  • Attenuation/100 ft @ 1920 MHz: 8.5 dB
  • Qty/ Uom: 1 Foot
  • Attenuation/100 ft @ 150 MHz: 2.19 dB
  • Attenuation/100 ft @ 2.0 GHz: 8.69 dB
  • Inner Conductor: Copper Clad Aluminum
  • Average Power @ 800 MHz: 0.382 kW
  • Average Power @ 894 MHz: 0.359 kW
  • Attenuation/100 ft @ 1700 MHz: 7.94 dB
  • Attenuation/100 ft @ 824 MHz: 5.35 dB
  • Average Power @ 960 MHz: 0.345 kW
  • Inductance: 0.061 µ H/ft
  • Attenuation/100 ft @ 30 MHz: 0.96 dB
  • Attenuation/100 ft @ 450 MHz: 3.88 dB
